IT’S BETTER THAN WATERPROOF, IT’S “PRESSURE-PROOF”

Sunken fire pits, In-Pool islands, water features, and ponds can all benefit from The Shield Kote System. It’s proprietary polymer blend and activation technology, Shield Kote has proven relentless in strength and durability on areas that are subject to negative side pressure, thermal expansion and contraction and more. It can be left exposed for a smooth stucco-like finish or coated over with thin set or other coatings. Shield Kote was developed for Fish Hatchery Restoration and continues to be the chosen system for that market.

FEATURES

  • Blocks Efflorescence
  • Resists Negative Side Pressure
  • Coatable
  • Easy to Apply

RESISTANT TO

  • FIRE / SALT
  • FREEZE / THAW
  • UV
  • IMPACT / ABBRASION

SUITABLE SUBSTRATE

Concrete

COMPONENTSCOVERAGE
*VAPOR SHIELDPer Gallon: 75 – 150 ft 2
*POND KOTEPer Bag: 120 ft 2
* 2 coats required

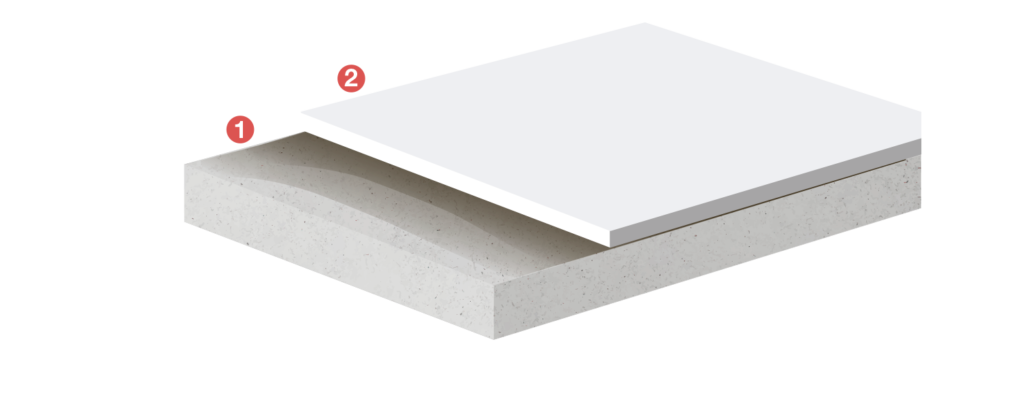

SYSTEM BREAKDOWN
  • STEP
  • PRODUCT INFO
  • INSTRUCTIONS
  • 1

    VAPOR SHIELD

    vapor barrier
    150 sqft/gallon

    item
  • 2

    POND KOTE

    waterproof membrane
    40 sqft/gallon

    item
product-1

Apply Vapor Shield with a pump sprayer in conjunction with water, back to back. Repeat for a total of 2 coats. Allow 24 hours to dry.

Learn more about  VAPOR SHIELD
product-2

Using a trowel, hopper gun, or magic trowel, apply Pond Coat to the surface at the desired thickness as long as it is under 1/4". In some cases, shrinkage cracks may appear, simply apply extra material to those areas upon completion.

Learn more about  POND KOTE

CUSTOMIZE THIS SYSTEM

TO FIT YOUR NEEDS

How much is your square feet?

Click the 3-Part Spec below to download


3-PART SPECIFICATION


Click “Show More” to view all of the testing points and their properties.


POND KOTE

Density, g/cc

175

Compressive Strength (28 day)

3125 psi

Flexural Strength (28 day)

1375 psi

Water %

2250%

Toxicity (96 hr LC50)

Passed*
*Toxicity testing was done on flat head minnows and rainbow trout, with no adverse effects to either species of fish

For Safety Data Sheets, visit our “Resources” page.


Click “Show More” to view all of the Frequently Asked Questions (FAQ’s) and their answers.


Q: Is this fish friendly?

A: Yes. Allow material to dry 7 to 10 days prior to filling with water. After filling, run circulation pumps/filters followed by a light brushing to remove any surface containments prior to adding fish. Longer dry time will be required for interior applications.

Q: Can I add colorant to the POND KOTE?

A: Yes as long as you mix the colorant with the water prior to adding the dry mix to it. You should not mix the colorant in after it has been mixed with water.

Q: Do I have to strip off any old material from the substrate?

A: Yes, we recommend approximately 92-100% removal of all old coatings prior to the application of this system.

Q: Can I paint the Pond Kote?

A: It is not advised to use paints in a submerged environment, especially in pools where chemicals are present. If you do decide to use paints, you should proceed with caution and contact the manufacturer to gather information prior to application.
